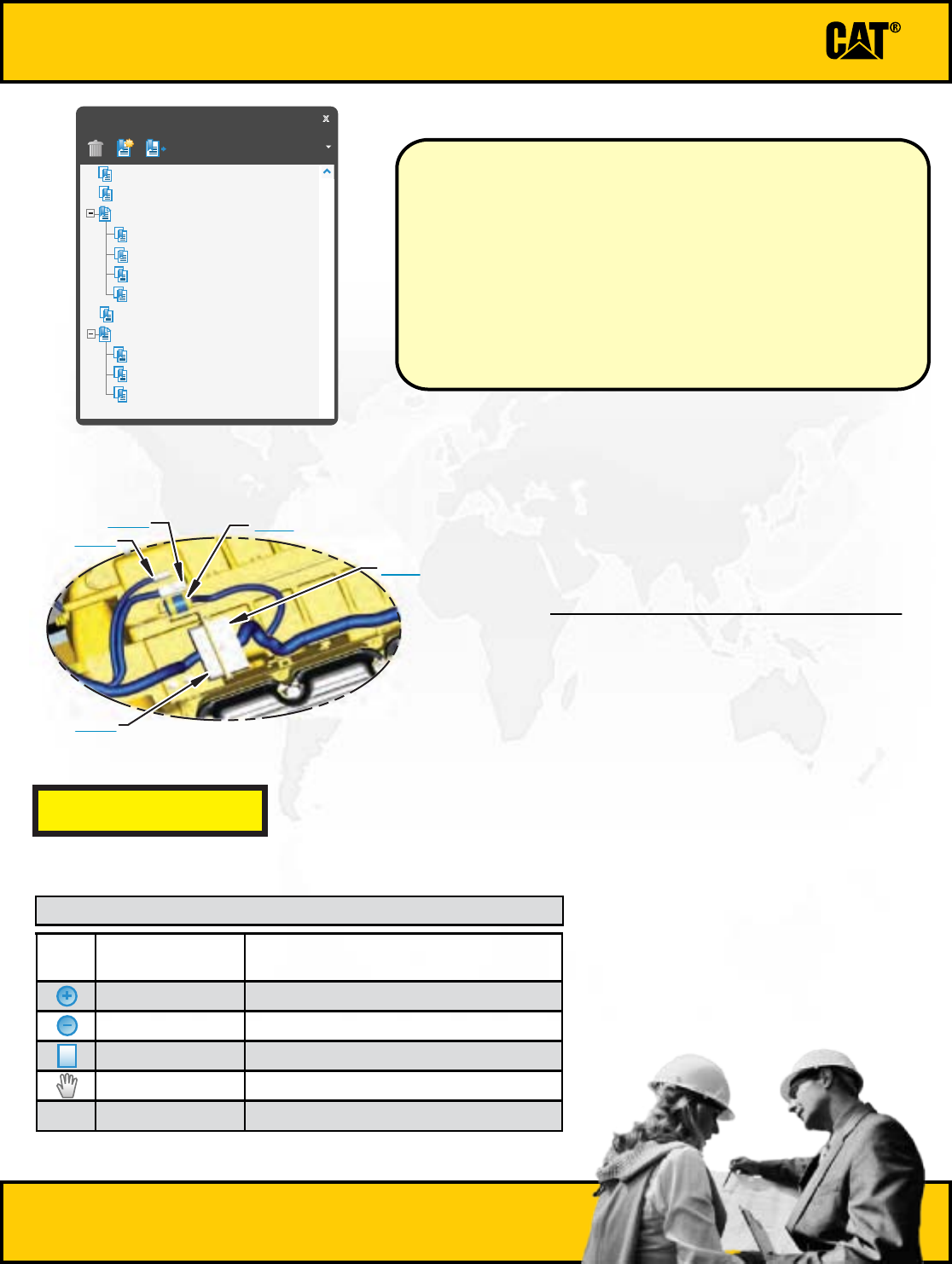

INTERACTIVE SCHEMATIC
The Bookmarks panel will allow you to
quickly navigate to points of interest.
Click on any text that is BLUE and underlined.
These are hyperlinks that can be used to navi-
gate the schematic and machine views.
When only one callout is showing on a machine view this
button will make all of the callouts visible. This button is
located in the top right corner of every machine view page.
VIEW ALL CALLOUTS
Cover Page
Information
Schematic
Machine Views
Component Table
Tap Table
Fluid Power Symbols
Electrical Symbols
Front Frame
Rear Frame
Tap Views
Features
Options
Bookmarks
X
EC-C3
EC-C2
E-C60
EC-C1
E-C61
To set your screen resolution do the following:
RIGHT CLICK on the DESKTOP.
Select PROPERTIES.
CLICK the SETTINGS TAB.
MOVE THE SLIDER under SCREEN RESOLUTION
until it shows 1024 X 768.
CLICK OK to apply the resolution.
This document is best viewed at a
screen resolution of 1024 X 768.
FUNCTION
Zoom In
HOTKEYS (Keyboard Shortcuts)
Zoom Out
Fit to Page
Hand Tool
“CTRL” / “+”
KEYS
“CTRL” / “-”
“CTRL” / “0” (zero)
“SPACEBAR” (hold down)
Find
“CTRL” / “F”
©
2010 Caterpillar, All Rights Reserved
Printed in U.S.A.
RENR9509-02
October 2010

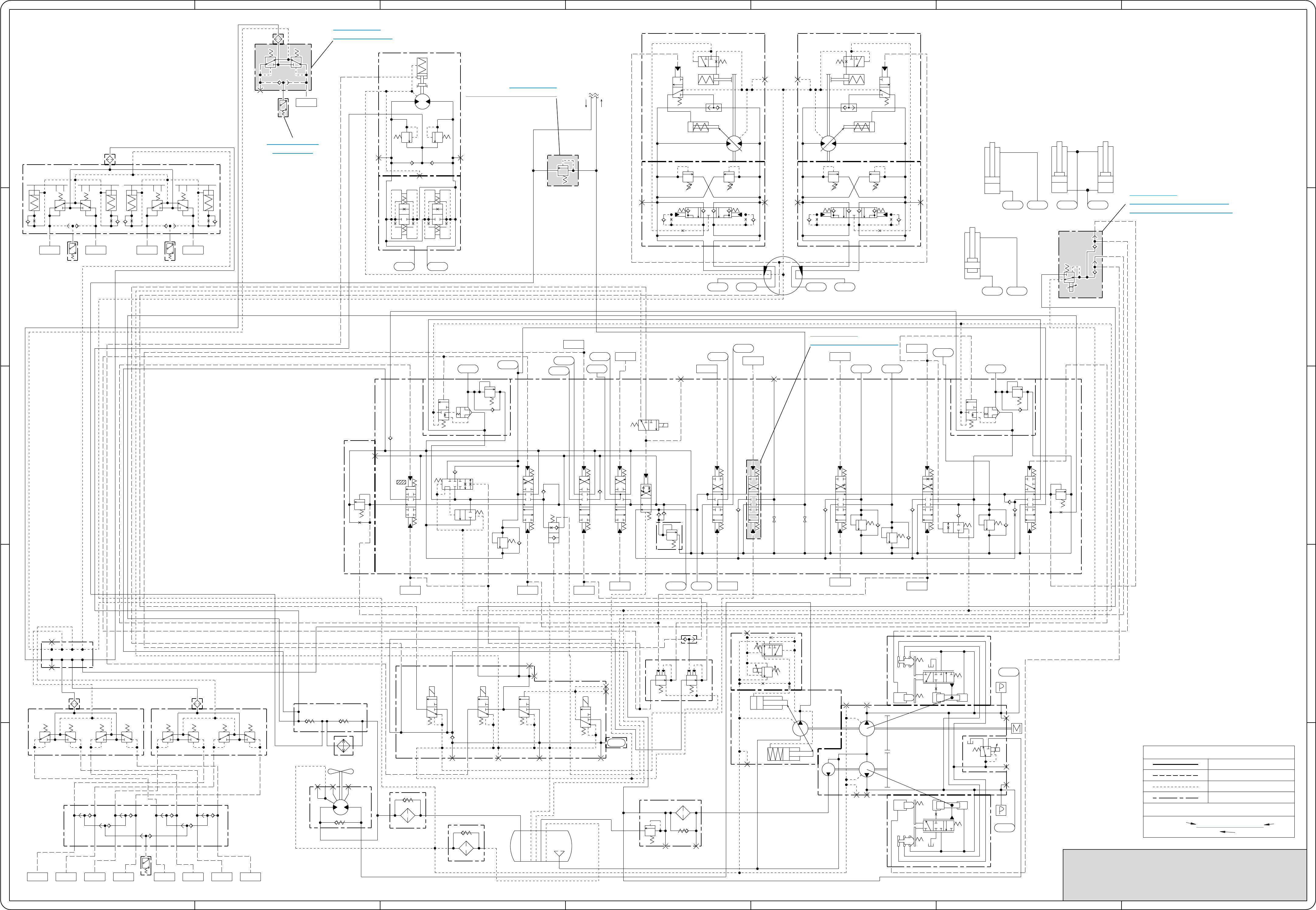

System 1: One-Way / One Pump
330D and 336D Excavator
Hydraulic System - Attachment
330D:
NBD1-UP
EDX1-UP
MEY1-UP
336D:
PRF1-UP
WRK1-UP
KKT1-UP
PGW1-UP
COMPONENT LOCATION
Description
Machine
Location
Schematic
Location
Switch AS - Pressure
E-6
1
Valve GP - Attachment Control
C-3
2
Valve GP - Relief (One-Way Flow)
E-5
3
Valve GP - Pilot Control
E-6
4
Valve GP - Proportional Reducing (Negative Flow Control)
D-2
5
System 1: One-Way / One Pump Attachment
FLUID POWER SYMBOLS
ONE POSITION
TWO POSITION
THREE POSITION
VENTED
PRESSURIZED
RETURN ABOVE FLUID LEVEL
RETURN BELOW FLUID LEVEL
LINES CROSSING LINES JOINING
TWO-WAY
THREE-WAY
FOUR-WAY
SPRING
CONTROL VALVES
RESTRICTION
LINE RESTRICTION
(FIXED)
2-SECTION PUMP
MAIN
AUX.
SPRING
(ADJUSTABLE)
VARIABILITY
LINE RESTRICTION
(VARIABLE)
LINE RESTRICTION
VARIABLE and PRESSURE
COMPENSATED
PRESSURE
COMPENSATION
PUMP: VARIABLE and
PRESSURE COMPENSATED
ENERGY TRIANGLES
HYDRAULIC PNEUMATIC
MEASUREMENT
PRESSURE
TEMPERATURE
FLOW
ROTATING SHAFTS
UNIDIRECTIONAL BIDIRECTIONAL
PUSH-PULL LEVER PEDALGENERAL MANUAL PUSH BUTTON SPRING
MANUAL CONTROL SYMBOLS
HYDRAULIC MOTORS
FIXED
DISPLACEMENT
VARIABLE DISPLACEMENT
NON-COMPENSATED
UNIDIRECTIONAL
BIDIRECTIONAL
HYDRAULIC PUMPS
FLUID STORAGE RESERVOIRS
CROSSING AND JOINING LINES
VALVE ENVELOPES
VALVE PORTS
BASIC COMPONENT SYMBOLS
FLUID CONDITIONER
PUMP or MOTOR
FIXED
DISPLACEMENT
VARIABLE DISPLACEMENT
NON-COMPENSATED
UNIDIRECTIONAL
BIDIRECTIONAL
VALVES
PILOT CONTROL SYMBOLS
RELEASED PRESSURE
EXTERNAL RETURN
INTERNAL RETURN
REMOTE SUPPLY PRESSURE
SIMPLIFIED
COMPLETE
INTERNAL
SUPPLY PRESSURE
ACCUMULATORS
SPRING LOADED GAS CHARGED
SOLENOID
or MANUAL
SOLENOID
and PILOT
SOLENOID and
PILOT or MANUAL
COMBINATION CONTROLS
SOLENOID
SERVO
THERMAL
DETENT
HYDRAULIC AND PNEUMATIC CYLINDERS
DOUBLE ACTINGSINGLE ACTING
BASIC
SYMBOL
SPRING
LOADED
CHECK VALVES
TWO
POSITION
INFINITE
POSITIONING
FLOW IN ONE
DIRECTION
FLOW ALLOWED IN
EITHER DIRECTION
THREE
POSITION
CROSS
FLOW
PARALLEL
FLOW
INTERNAL PASSAGEWAYS
NORMAL POSITION
A B
P T
A B
P T
SHIFTED POSITION
INFINITE POSITION
CONTROL VALVES
ATTACHMENT
MANUAL SHUTOFF
SHUTTLE PILOT
CONTROLLED
ELECTRICAL SYMBOLS
Hydraulic Symbols (Electrical)
325-AG135 PK-14
Circuit Identification
Number
Wire Color
Wire Gauge
Harness identification code
This example indicates
wire 135 in harness "AG".
325-PK-14
Wire Gauge
Wire Color
Circuit Number
Identification
Wire Number Identification Codes
Current Standard
Previous Standard
Electrical Schematic Example
Hydraulic Schematic Example
325-PK
Wire Color
Circuit Number
Identification
B
A
Wire
Wire
(EXAMPLE VALVE)
Current Standard
Transducer
(Fluid)
Transducer
(Gas / Air)
G
Generator
Electrical Wire
Pressure Switch
M
Electric Motor
Pressure Switch
(Adjustable)
Temperature Switch
Pressure
Symbol
Temperature
Symbol
Level
Symbol
Flow
Symbol
Electrical Symbols (Electrical)
T
LINE PATTERNS
Drain / Return Lines
Component Group
Pilot / Load Sensing Pressure
Main Connector Line
CALLOUTS
(52) VALVE GP - CONTROL
138-1234
Callout Number
(Machine Location from
Component LocationsTable)
Component
Name
Part Number
Components are shown installed on a fully operable machine with the key and engine off,
and with parking brake set.
Refer to the appropriate Service Manual for Troubleshooting, Specifications and Systems Operations.
THIS SCHEMATIC IS FOR THE 330D AND 336D EXCAVATOR
ATTACHMENT: SYSTEM 1: ONE-WAY / ONE PUMP
PART NUMBER: 255-5853, CHANGE: 01, VERSION: HE
A
B
C
D
E
1234567
A
B
C
D
E
1234567
TRAVEL(L)
TRAVEL(R)
T1
T5
BACK
FWD
BACK
FWD
T2
T4
T6
T3
JLP
JLT
STICK
SWING
OUT
JL1
IN
JL3
R
L
JL2
JL4
BUCKET
BOOM
OPEN
CLOSE
DOWN
UP
JR1
JR2
JR3
JR4
JRP
JRT
Di2
STICK(2)
BOOM(1)
ATCH
BUCKET
TRAVEL(R)
TRAVEL(L)
SWING
STICK(1)
BOOM(2)
Pi2
Pi3
Di3
DST
Di1
HR
T
AL4
aL4
SPi
SDr
SP3
Di4
Pi4
Pi1
BP3
BDr
BPi
BP2
R3
aR5
AR5
BR5
AR2
BR2
(UP)
(OUT)
(IN)
(R)
(L)
(FWD)
(REV)
(FWD)
(REV)
(OPEN)
(CLOSE)
(UP)
(DOWN)
(OUT)
aL3
P
T
A1
A2
B1
B2
SINGLESINGLE
PG
DR
MU
A
B
SWING MOTOR
A
B
C
D
E
F
G
P1
P2
B1
B2
A1
A2
T
P2
Pi1
P1
DR1
DR2
DR3
DR4
DR5
DR6
P-IN
PSA1
PSA2
T-OUT1
T-OUT2
Pi2
HL
IN
OUT
T
PST
bR5
1 2
RP
RT
3
bR2
TT
TP
X
X
PAC
U
FR
RR
PSV
B
A4
Pi2
Pi1
Dr1
Di
D0
PS1
PS2
A1
a1
a4
a3
a2
a5
A2
B
L
L1
S
PG
PC
A1
A2 A3 A4 A5 A6 A7 A8
B1 B2
B3
B4
B5
B6
B7
B8
STICK CYLINDER
BOOM
CYLINDER
BUCKET CYLINDER
BOOM
CYLINDER
TRAVEL MOTOR (LEFT) TRAVEL MOTOR (RIGHT)
T1
T1
A
B
A
B
µ
µ µ
µ
aL1 bL1 bR1 aR1
µ
µ µ
µµ
µ µ
µ
BL2 AL2
NO.1
(TRAVEL)
NO.2
(SWING)
NO.3
(LOCK)
AR3
AR4
aR4
BR3
aR3
aR2
aR1
BR1
AR1aL1AL1
BL1
aL2
BL1
AL1
BL3
AL3
bL4 bL3 bL2
bL1 bR4
bR3
BR4
bR1
aR2
DR
DR1
L2
L3
A
B
PRPL
PR
PL
aR3 aR4 bR3 bR4 bL3 bL4 aL2bL2
AL3 BL3
AR3 BR3 AR4 BR4
BL1 AL1 BR1 AR1
A1
DR
B1
(4) VALVE GP
PILOT CONTROL
(1) SWITCH AS
PRESSURE
(3) VALVE GP
RELIEF (ONE-WAY FLOW)
(5) VALVE GP
PROPORTIONAL REDUCING
(NEGATIVE FLOW CONTROL)
(2) VALVE GP
ATTACHMENT CONTROL

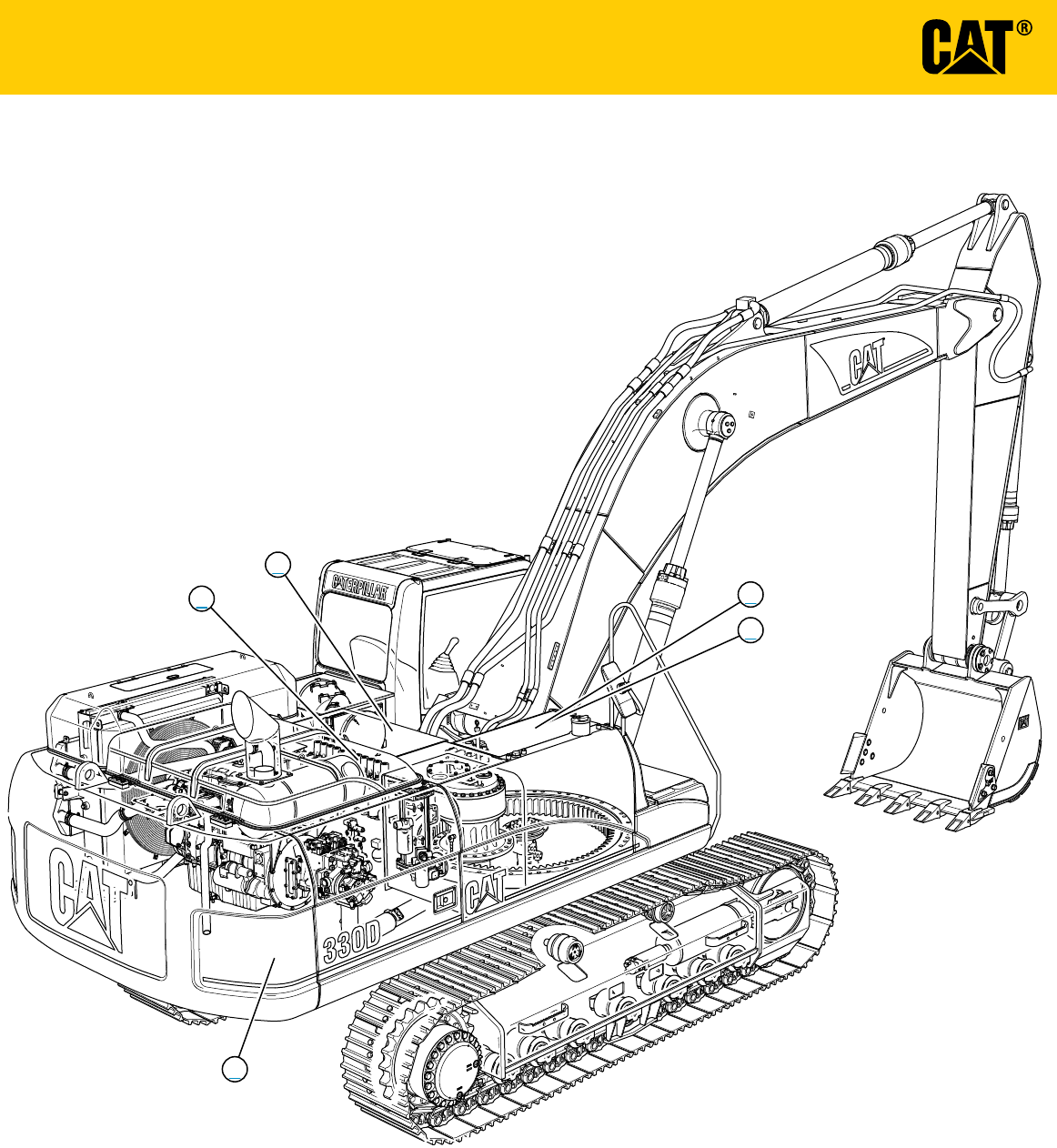

MACHINE COMPONENT LOCATIONS
5
4
3
2
1
VIEW ALL CALLOUTS
