RENR9429-05
May 2011
System 16: One-Way / Two Pump
330D and 336D Excavator
Hydraulic System - Attachment
330D:
GBC1-UP
GGE1-UP
THJ1-UP
LRM1-UP
ERN1-UP
RAS1-UP
T2Y1-UP
336D:
JBF1-UP
LMG1-UP
MYG1-UP
KDJ1-UP
PPN1-UP
MYP1-UP
DTS1-UP
WET1-UP
Printed in U.S.A.© 2010 Caterpillar, All Rights Reserved
ONE POSITION TWO POSITION THREE POSITION
VENTED
PRESSURIZED
RETURN ABOVE FLUID LEVEL RETURN BELOW FLUID LEVEL
LINES CROSSING LINES JOINING
TWO - WAY THREE - WAY FOUR - WAY
SPRING CONTROL VALVES RESTRICTION LINE RESTRICTION
(FIXED)
PUMP
(2 - SECTION)
SPRING
(ADJUSTABLE)
VARIABILITY LINE RESTRICTION
(VARIABLE)
PRESSURE
COMPENSATION
PUMP
(VARIABLE & PRESSURE
COMPENSATED)
MEASUREMENT
PRESSURE TEMPERATURE FLOW
ROTATING SHAFTS
UNIDIRECTIONAL BIDIRECTIONAL
PUSH - PULL LEVER PEDALGENERAL MANUAL PUSH BUTTON SPRING
FIXED
DISPLACEMENT
VARIABLE DISPLACEMENT
NON-COMPENSATED
UNIDIRECTIONAL
BIDIRECTIONAL
VALVE ENVELOPES VALVE PORTS
FLUID CONDITIONERPUMP OR MOTOR
FLUID POWER SYMBOLS
UNIDIRECTIONAL
BIDIRECTIONAL
RELEASED PRESSURE
EXTERNAL RETURN INTERNAL RETURN
REMOTE SUPPLY PRESSURE
SIMPLIFIED
HYDRAULIC PUMPS
ACCUMULATORS
SPRING LOADED GAS CHARGED
SOLENOID
OR MANUAL
SOLENOID
& PILOT
SOLENOID &
PILOT OR MANUAL
SOLENOID SERVO THERMAL DETENT
HYDRAULIC & PNEUMATIC CYLINDERS
DOUBLE ACTINGSINGLE ACTING
BASIC
SYMBOL
SPRING
LOADED
CHECK VALVES
2 POSITION
INFINITE
POSITIONING
FLOW IN ONE
DIRECTION
FLOW IN
EITHER
DIRECTION
3 POSITION
CROSS
FLOW
PARALLEL
FLOW
INTERNAL PASSAGEWAYS
NORMAL POSITION
AB
PT
AB
PT
SHIFTED POSITION INFINITE POSITION
CONTROL VALVES
ATTACHMENT
MANUAL SHUTOFF
SHUTTLE PILOT
CONTROLLED
MAIN AUX
LINE RESTRICTION
(VARIABLE & PRESSURE
COMPENSATED)
MANUAL CONTROL SYMBOLS
HYDRAULIC MOTORS
FLUID STORAGE RESERVOIRS
CROSSING & JOINING LINES
VALVES
PILOT CONTROL SYMBOLS
COMBINATION CONTROLS
BASIC COMPONENT SYMBOLS
ENERGY TRIANGLES
HYDRAULIC PNEUMATIC
INTERNAL
SUPPLY PRESSURE
COMPLETE
FIXED
DISPLACEMENT
VARIABLE DISPLACEMENT
NON-COMPENSATED
HYDRAULIC SYMBOLS (ELECTRICAL)
ELECTRICAL SYMBOLS TABLE
325-AG135 PK-14
HARNESS IDENTIFICATION CODE THIS EXAMPLE
INDICATES WIRE 135 IN HARNESS “AG”
325-PK-14
WIRE GAUGE
WIRE COLOR
CIRCUIT NUMBER
IDENTIFICATION
WIRE NUMBER IDENTIFICATION CODES
CURRENT STANDARD
PREVIOUS STANDARD
ELECTRICAL SCHEMATIC EXAMPLE HYDRAULIC SCHEMATIC EXAMPLE
325-PK
WIRE COLOR
CIRCUIT NUMBER
IDENTIFICATION
B
WIRE
WIRE
(EXAMPLE VALVE)
CURRENT STANDARD
TRANSDUCER
(FLUID)
M
ELECTRIC MOTORTRANSDUCER
(GAS / AIR)
G
GENERATOR
PRESSURE SWITCH ELECTRICAL WIREPRESSURE SWITCH
(ADJUSTABLE)
TEMPERATURE
SWITCH
PRESSURE
SWITCH
TEMPERATURE
SWITCH
LEVEL
SWITCH
FLOW
SWITCH
ELECTRICAL SYMBOLS (ELECTRICAL)
A
CIRCUIT NUMBER
IDENTIFICATION
WIRE
COLOR
WIRE GAUGE
T
RENR9429-05

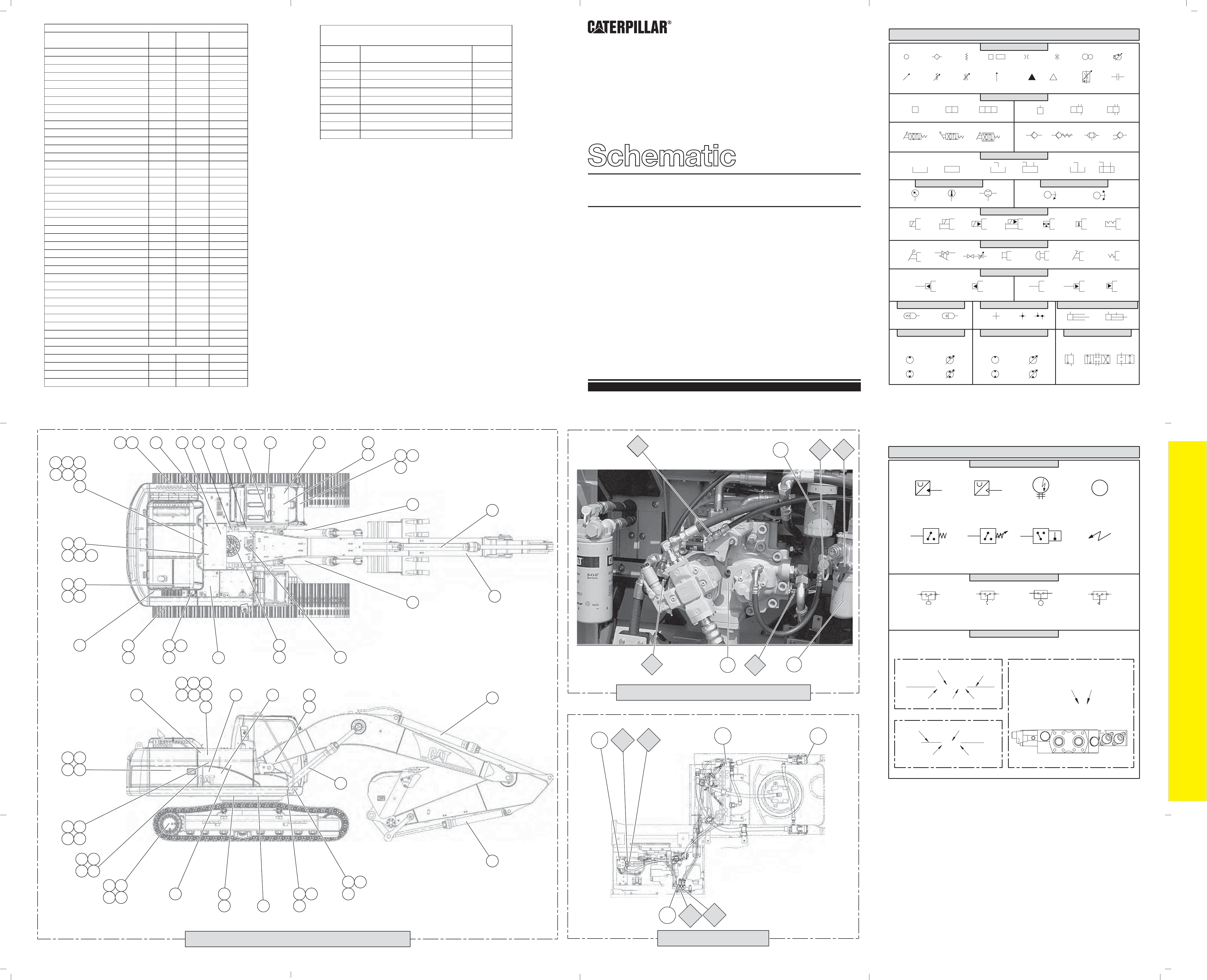

24 Page, (Dimensions: 34 inches x 28 inches)
Description
Part
Number
Machine
Location
Schematic
Location
Accumulator Gp - Pilot Manifold 164-6981 1 B-4
Cylinder Gp - Boom Note A 2 F-5
Cylinder Gp - Bucket Note A 3 E-5
Cylinder Gp - Stick Note A 4 F-5
Filter Gp - Case Drain 126-2075 5 A-4
Filter Gp - Pilot Hydraulic 158-8987 6 A-4
Filter Gp - Return Oil 188-4140 7 B-6
Motor Gp - Hydraulic Fan 234-4638 8 C-6
Motor Gp - Left Travel 271-6376 9 F-3
Motor Gp - Right Travel 271-6376 10 F-2
Moto
r Gp - Swing 200-3373 11 F-7
Pump Gp - Hydraulic Fan 259-081
512 B-3
Pump Gp - Main and Pilot 283-6116 13 B-2
Sensor As - Left Pump Press. 221-8859 14 A-2
Sensor As - Right Pump Press. 221-8859 15 B-2
Switch As - Left Travel Pilot 167-3466 16 D-7
Switch As - Pilot Pressure 167-3466 17 A-7
Switch As - Right Travel Pilot 167-3466 18 D-6
Swivel Gp 234-4440 19 E-3
Tank As - Hydraulic Oil 239-1661 20 A-5
Valve Gp - Check, Cooler Bypass 190-
7745 21 C-7
Valve Gp - Heavy Lift Solenoid 121-6303 28 B-4
Valve Gp - Left Travel Counterbalance 204-2819 29 E-3
Valve Gp - Load Control Boom Cyli
nder 255-5683 30 D-1
Valve Gp - Load Control Stick Cylinder 255-5680 31 D-5
Valve Gp - Main Control 285-1345 32 C-1 to C-6
Valve Gp - Pilot Manifold 215-5037 34 B-5 to B-6
Valve Gp - Pilot, Bucket and Boom 270-5952 35 B-7
Valve Gp - Pilot, Stick and Swing 270-5951 36 B-7
ValveGp-Press.
Red. Boom/ Swing 232-4102 37 B-4
Valve Gp - Press. Red. Bucket/ Stick 232-4102 38 A-6
Valve Gp - Pressure Relief 206-3354 39 A-6
Valve Gp - Right Travel Counterbalance 204-2819 40 E-2
Valve Gp - Shuttle 185-0462 41 A-6
Valve Gp - Shutt
le 259-7732 42 B-4
Valve Gp - Swing Cushion 158-9090 43 E-7
Valve Gp - Travel Pilot 270-5947 44 D-6
Valve Gp - Control, Auxiliary 285-1375 50 D-6
Valve Gp - Neg. Flow Control 171-0188 51 E-1
Valve Gp - Re
lief 177-2653 52 F-4
Valve Gp - Solenoid and Press. Reducing 259-7430 53 E-2
Note A: Refer to service manual for specific cylinder information.
Component Locations
Attachments
Tap Locations
Pressure and Sampling
Tap
Number
Description
Schematic
Location
AA Left Pump Delivery Pressure B-1
BB Right Pump Delivery Pressure B-1
CC Pilot Pump Delivery Pressure A-4
KK RightPumpPilotPressure E-1
LL Left Pump Pilot Pressure E-1
MM Pilot Pressure Pa1 (B1), Attachment E-2
NN Pilot Pressure aR2 (B2), Attachment E-2
OO Pump Power Shift Pressure B-1
SOS Hydraulic Oil Sampling Port A-4
2
4
18
52
17921
3
35 21
41
36
2
2
11
43 19
20
6
7
10
21
41
17
13 14
15
32
30
31
51
28
37
910
14
13
15
2021
36
35
3
11
1943
51
28
37
44
5
16
18
44
16
29 40
29
40
6
45
7
5
1
1
50
50
4
40 52
52
50
38
51
39
SOS
CC
6
5
13
AA
BB
34
34
42
52
53
51
LL
KK
NN
MM
OO
MAIN AND PILOT PUMP GP (13)
50
32
30
31
50
38
51
39
TAP LOCATIONS
MACHINE COMPONENT LOCATIONS
LINE PATTERNS
Drain / Return Lines
Component Group
Pilot / Load Sensing Pressure
Pressure Line
Attachment
Air Line
CALLOUTS
Taps (Pressure, Sampling, Sensor - by letter)
Components (By number)
YY
52
HYDRAULIC CIRCUIT COLOR DESCRIPTIONS
PILOT PUMP OUTPUT
RIGHT MAIN PUMP OUTPUT
HEAVY LIFT CONTROL CIRCUIT
LEFT AND RIGHT MAIN PUMP POWERSHIFT CIRCUIT
FAN PUMP AND CONTROL CIRCUIT
SUPPLY LINE
STICK CYLINDER CONTROL CIRCUIT
LEFT TRAVEL MOTOR CONTROL CIRCUIT
ATTACHMENT CONTROL CIRCUIT
SWING MOTOR CONTROL CIRCUIT
DRAIN / RETURN LINE
SWING BRAKE CONTROL CIRCUIT
RIGHT MAIN PUMP OUTPUT
TRAVEL SPEED CONTROL CIRCUIT
BUCKET CYLINDER CONTROL CIRCUIT
RIGHT TRAVEL MOTOR CONTROL CIRCUIT
BOOM CYLINDER CONTROL CIRCUIT
RENR9429-05
24 Page, (Dimensions: 34 inches x 28 inches)

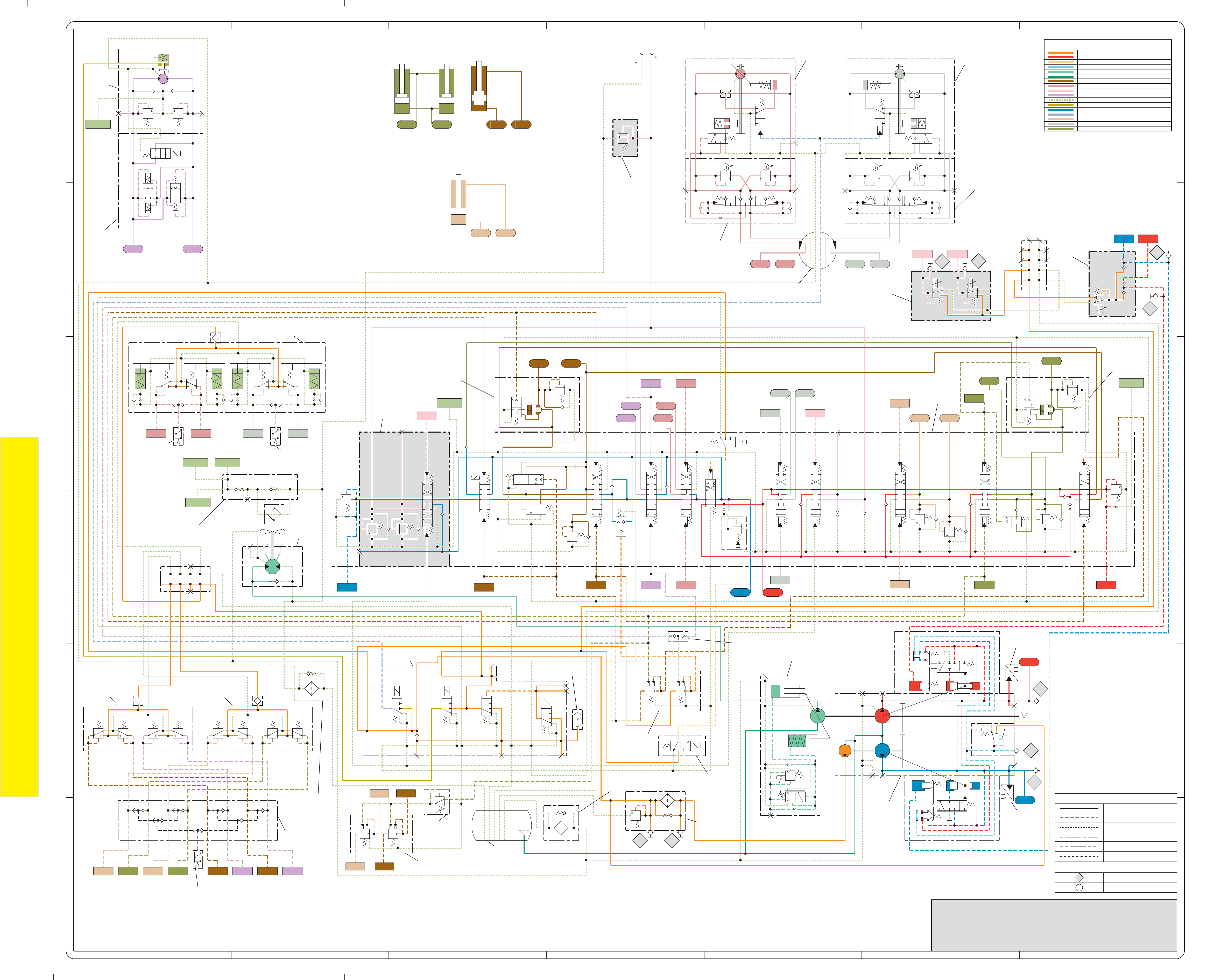

THIS SCHEMATIC IS FOR THE 330D, AND 336D EXCAVATOR HYDRAULIC SYSTEM
ATTACHMENT: SYSTEM 16: ONE-WAY / TWO PUMP
MEDIA NUMBER: RENR9429-05
PART NUMBER: 255-5860, CHANGE: 01, VERSION: HE
Components are shown installed on a fully operable machine.
Refer to the appropriate Service Manual for Troubleshooting, Specifications.
