RENR2117-02
January 2009
Volume 1 of 2: Brakes, Pilot Implements, and HMU Steering
966G and 972G Wheel Loader
Hydraulic System
966G:
AAH1-UP
3ZS1-UP
9RS1-UP
3PW1-UP
3SW1-UP
8XW1-UP
972G:
7LS1-UP
AAW1-UP
1EW1-UP
4WW1-UP
6AW1-UP
9GW1-UP
Printed in U.S.A.© 2009 Caterpillar, All Rights Reserved
ONE POSITION TWO POSITION THREE POSITION
VENTED
PRESSURIZED
RETURN ABOVE FLUID LEVEL RETURN BELOW FLUID LEVEL
LINES CROSSING LINES JOINING
TWO - WAY THREE - WAY FOUR - WAY
SPRING CONTROL VALVES RESTRICTION LINE RESTRICTION
(FIXED)
PUMP
(2 - SECTION)
SPRING
(ADJUSTABLE)
VARIABILITY LINE RESTRICTION
(VARIABLE)
PRESSURE
COMPENSATION
PUMP
(VARIABLE & PRESSURE
COMPENSATED)
MEASUREMENT
PRESSURE TEMPERATURE FLOW
ROTATING SHAFTS
UNIDIRECTIONAL BIDIRECTIONAL
PUSH - PULL LEVER PEDALGENERAL MANUAL PUSH BUTTON SPRING
FIXED
DISPLACEMENT
VARIABLE DISPLACEMENT
NON-COMPENSATED
UNIDIRECTIONAL
BIDIRECTIONAL
VALVE ENVELOPES VALVE PORTS
FLUID CONDITIONERPUMP OR MOTOR
FLUID POWER SYMBOLS
UNIDIRECTIONAL
BIDIRECTIONAL
RELEASED PRESSURE
EXTERNAL RETURN INTERNAL RETURN
REMOTE SUPPLY PRESSURE
SIMPLIFIED
HYDRAULIC PUMPS
ACCUMULATORS
SPRING LOADED GAS CHARGED
SOLENOID
OR MANUAL
SOLENOID
& PILOT
SOLENOID &
PILOT OR MANUAL
SOLENOID SERVO THERMAL DETENT
HYDRAULIC & PNEUMATIC CYLINDERS
DOUBLE ACTINGSINGLE ACTING
BASIC
SYMBOL
SPRING
LOADED
CHECK VALVES
2 POSITION
INFINITE
POSITIONING
FLOW IN ONE
DIRECTION
FLOW IN
EITHER
DIRECTION
3 POSITION
CROSS
FLOW
PARALLEL
FLOW
INTERNAL PASSAGEWAYS
NORMAL POSITION
AB
PT
AB
PT
SHIFTED POSITION INFINITE POSITION
CONTROL VALVES
ATTACHMENT
MANUAL SHUTOFF
SHUTTLE PILOT
CONTROLLED
MAIN AUX
LINE RESTRICTION
(VARIABLE & PRESSURE
COMPENSATED)
MANUAL CONTROL SYMBOLS
HYDRAULIC MOTORS
FLUID STORAGE RESERVOIRS
CROSSING & JOINING LINES
VALVES
PILOT CONTROL SYMBOLS
COMBINATION CONTROLS
BASIC COMPONENT SYMBOLS
ENERGY TRIANGLES
HYDRAULIC PNEUMATIC
INTERNAL
SUPPLY PRESSURE
COMPLETE
FIXED
DISPLACEMENT
VARIABLE DISPLACEMENT
NON-COMPENSATED
HYDRAULIC SYMBOLS (ELECTRICAL)
ELECTRICAL SYMBOLS TABLE
325-AG135 PK-14
HARNESS IDENTIFICATION CODE THIS EXAMPLE
INDICATES WIRE 135 IN HARNESS “AG”
325-PK-14
WIRE GAUGE
WIRE COLOR
CIRCUIT NUMBER
IDENTIFICATION
WIRE NUMBER IDENTIFICATION CODES
CURRENT STANDARD
PREVIOUS STANDARD
ELECTRICAL SCHEMATIC EXAMPLE HYDRAULIC SCHEMATIC EXAMPLE
325-PK
WIRE COLOR
CIRCUIT NUMBER
IDENTIFICATION
B
WIRE
WIRE
(EXAMPLE VALVE)
CURRENT STANDARD
TRANSDUCER
(FLUID)
M
ELECTRIC MOTORTRANSDUCER
(GAS / AIR)
G
GENERATOR
PRESSURE SWITCH ELECTRICAL WIREPRESSURE SWITCH
(ADJUSTABLE)
TEMPERATURE
SWITCH
PRESSURE
SWITCH
TEMPERATURE
SWITCH
LEVEL
SWITCH
FLOW
SWITCH
ELECTRICAL SYMBOLS (ELECTRICAL)
A
CIRCUIT NUMBER
IDENTIFICATION
WIRE
COLOR
WIRE GAUGE
T
RENR2117-02 VOL 1 of 2
24 Page, (Dimensions: 34 inches x 28 inches)
27
14
25
2
3431
32
33
GG
957
6
51
52
59
53
54
37
8
CC
DD
MM
16
37
8
HH
50
11
FF
57
5855
56
29
3021
20
JJ
35
18
15
16
LL
361724
3
13
194
6
11
59
16
50
BB
DD
MM
AA
5451
52
53
27
14
25
2
3431
32
3328
28
9
5
7
GG
51378
HH
21
20
JJ
36
KK
24
3
13 17
LL
15
35 18 57
5855
56
29
28
COMPONENT LOCATIONS
DD
50
FF
55
CC
KK
MM
17
Tap Locations
Pressure and Sampling
Tap
Number
Description
Schematic
Location
AA Tilt Cylinder Rod End Pressure F-5
BB Tilt Cylinder Head End Pressure F-5
CC Rear Service Brake Pressure F-3
DD Front Service Brake Presseure F-3
FF Service Brake Accumulator Pressure D-2
GG Implement Pilot Pump Pressure D-4
HH Implement Pump Pressure C-7
JJ Fluid Sampling Valve B-6
KK Steering Pump Pressure B-3
LL Fan Drive Pump Pressure B-6
MM Steering Signal Pressure A-4
STEERING PUMP
Component Locations
Description
Part
Number
Machine
Location
Schematic
Location
Description
Connector - Orifice 128-7063 1 D-4 to D-5 Valve Gp - Pilot
Accumulator As - Ride Control 108-5933 2 F-4 Valve Gp - Pilot, Shut Off
Cooler 130-8842 3 B-5
Valve Gp - Pilot (Oil Manifold, 2 Funct.)
Pilot (Oil Manifold, 3 Funct.)
Cooler As - Brake Oil Cooling Attachment 134-2454 4 A-6
Cylinder Gp - Auxiliary 5 F-6 Valve Gp - Relief (Line, Aux, HE)
Cylinder Gp - Lift (LH) 133-2964 6 F-4 Valve Gp - Relief (Line, Aux, RE)
Cylinder Gp - Lift (RH) 133-2963 7 F-4
Valve Gp - Relief (Line,Tilt, RE, HE)
Standard 2 And 3 Valve
Relief (Line, Tilt, RE), Logging
Relief (Line,Tilt, HE), Logging
Cylinder Gp - Steering 133-1747 8 C-2
Cylinder Gp - Tilt, 966
972
144-9005
133-2962
9 F-5
Elbow - Orifice 108-2144 10 B-4
Valve Gp - Relief, Main Standard
Logging
Filter Gp - Oil, Hydr. (Fan / Cooler Flow) 134-3016 11 B-6
Manifold Gp - (Lift, Standard) 130-2073 12 E-4 Valve Gp - Secondary Steering (Diverter)
Motor Gp - Hydraulic Fan 161-8919 13 B-5 Valve Gp - Steering
Plate - Orifice 8V-2080 14 F -5 Valve Gp - Steering Neutralizer
Pump and Motor Gp - Sec. Steering 154-2563 15 A-5
BRAKES
Pump Gp - HMU 147-7343 16 B-4 Accumulator Gp - Brake (Charged)
Pump Gp - Hydraulic Fan 162-0772 17 B-6 Actuator As - Parking Brake
Pump Gp - Steering
Implement
Pilot / Brake
167-1154 18 B-7
Control Gp - Foot Brake
Sensor Gp - Position (Rotary, Lft Brk Pdl)
Switch As - Limit (Stop Light)
Screen Gp 6E-5065 19 A-7 Switch As - Pressure (Parking Brakes)
Tank Gp - Hydraulic 133-1843 20 A-6 to A-7 Switch As - Pressure (Low Pressure Warning)
Valve - Breaker Relief 9T-0818 21 A-7 Valve Gp - Accumulator
Valve Gp - Check (Air Purge)(Air Bleed) 3G-8607 22 Valve Gp - Brake Control (Parking)
Valve Gp - Check (Ride Control) 9T-3096 23 E-4 Valve Gp - Brake Control (Service)
Valve Gp - Cooler Bypass 9T-6005 24 B-5
Valve Gp - Diverter (Ride Control) 137-3520 25 E-4
Valve Gp - Flow Divider (Axle Oil Cooler) 133-1729 26 B-6
Valve Gp - Main Control,
2 Func., Standard
3 Func. Logging
3 Func., (Attch)
Control,
1 Func., Field Conversion
120-7477
120-7475
120-7473
120-7611
27 E-4 to E-7
Part
Number
Machine
Location
Schematic
Location
144-0115 28
112-1817 29 D-5
152-6480
152-6481
30 D-4 to D-5
4T-2742 31 E-7
4T-4162 32 F-6
6E-2377
9T-8488
4T-2764
33 F-5
6E-6003
6E-6185
34 E-7
141-2597 35
142-3996 36 B-2 to B-3
146-7571 37 C-4
198-9841 50 F-2
154-8042 51 F-1
193-1448 52 F-2
214-4863 53 F-3
105-6117 54 F-3
3E-6452 55 E-1
3E-7693 56 D-3
229-9984 57 E-3
106-1774 58 D-1
210-5587 59 F-2
FRONT, RIGHT VIEW OF HITCH
SERVICE BRAKES ACCUM CHARGING VALVE SERVICE BRAKES CONTROL VALVE
LINE PATTERNS
Drain / Return Lines
Component Group
Pilot / Load Sensing Pressure
Pressure Line
Attachment
Air Line
CALLOUTS
Taps (Pressure, Sampling, Sensor - by letter)
Components (By number)
YY
52

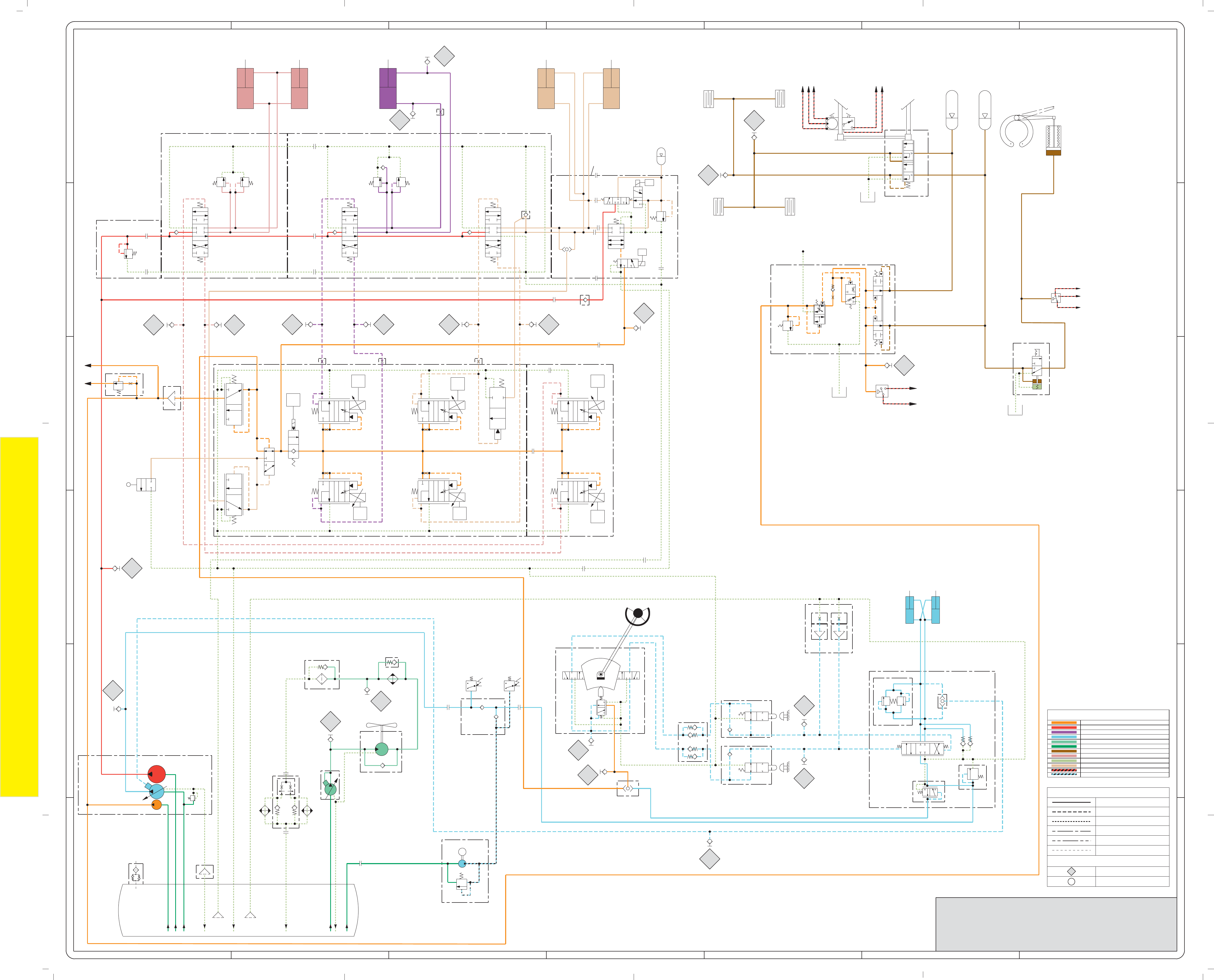

HYDRAULIC CIRCUIT COLOR DESCRIPTIONS
PILOT / BRAKE PUMP OUTPUT
IMPLEMENT PUMP OUTPUT
TILT CONTROL CIRCUIT
STEERING CIRCUIT
FAN PUMP AND CIRCUIT
SUPPLY LINE
BRAKE CONTROL CIRCUIT
AUXILIARY CONTROL CIRCUIT
DRAIN / RETURN LINE
LIFT CONTROL CIRCUIT
ELECTRICAL WIRES
SECONDARY STEERING PUMP CIRCUIT
RENR2117-02 VOL 1 of 2
24 Page, (Dimensions: 34 inches x 28 inches)

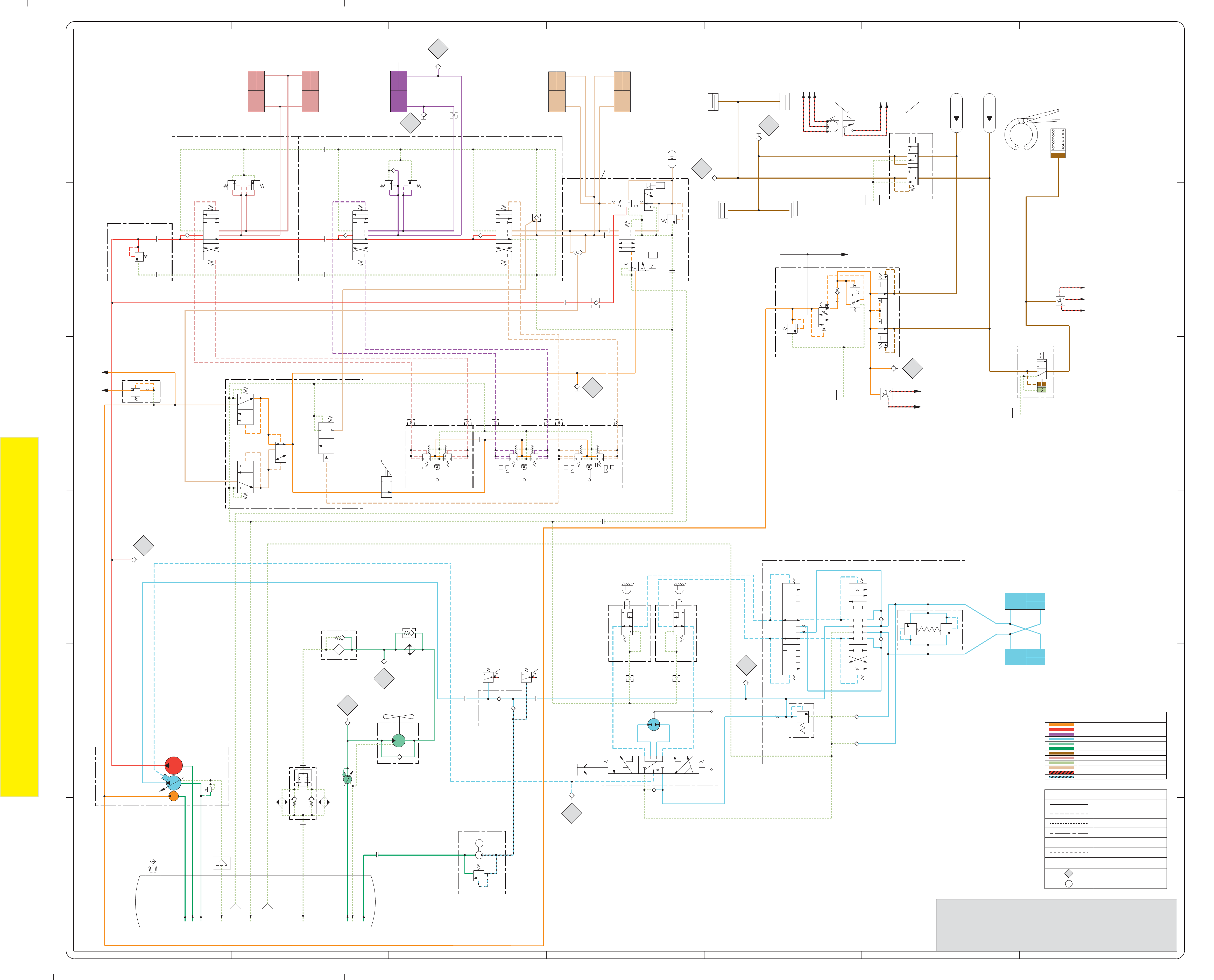

THIS SCHEMATIC IS FOR THE 966G AND 972G WHEEL LOADER HYDRAULIC SYSTEM
