CAT 330D and 336D Excavator Hydraulic System Attachment 3

INTERACTIVE SCHEMATIC
The Bookmarks panel will allow you to
quickly navigate to points of interest.
Click on any text that is BLUE and underlined.
These are hyperlinks that can be used to navi-
gate the schematic and machine views.
When only one callout is showing on a machine view this
button will make all of the callouts visible. This button is
located in the top right corner of every machine view page.
VIEW ALL CALLOUTS
Cover Page
Information
Schematic
Machine Views
Component Table
Tap Table
Fluid Power Symbols
Electrical Symbols

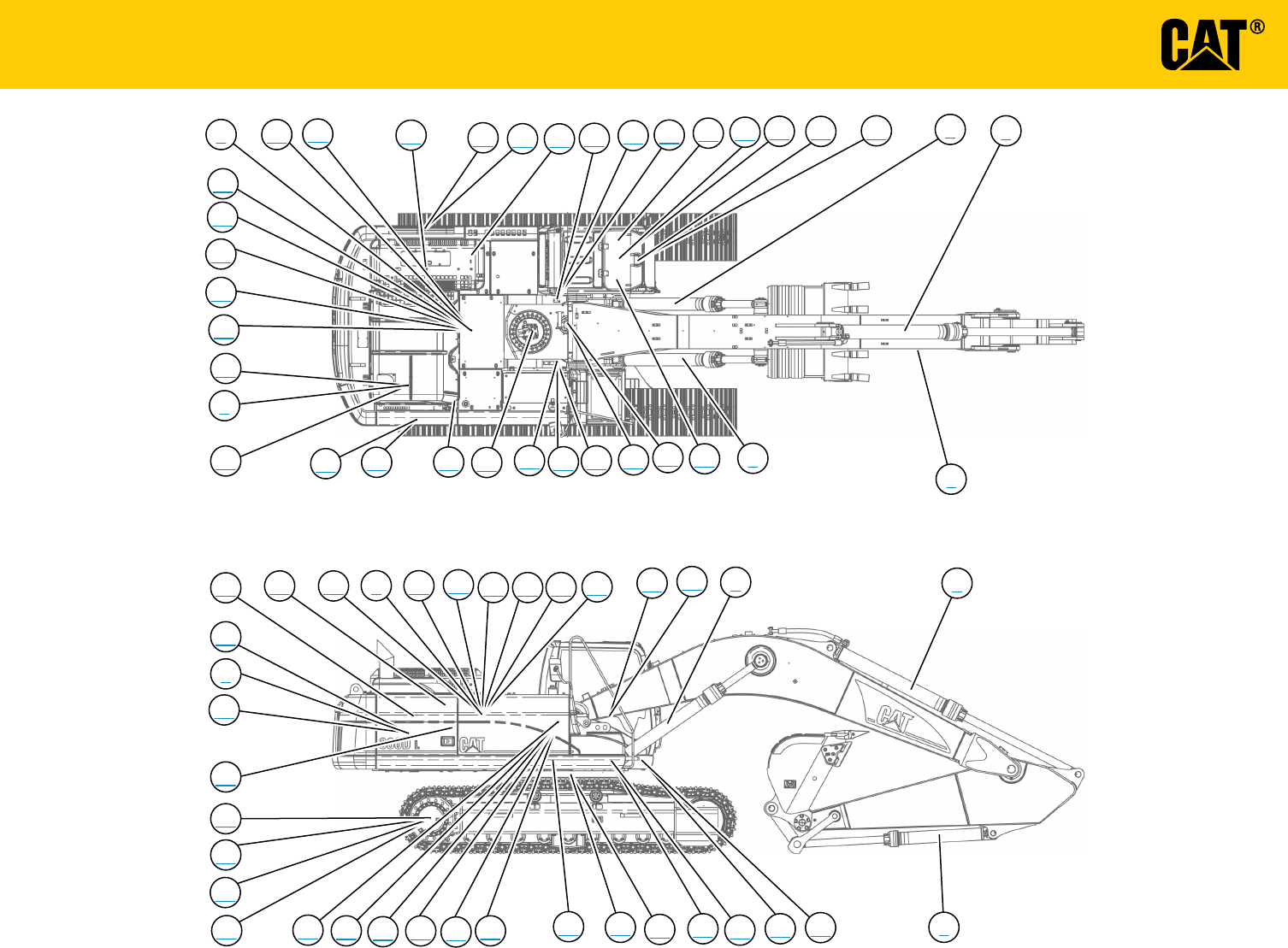

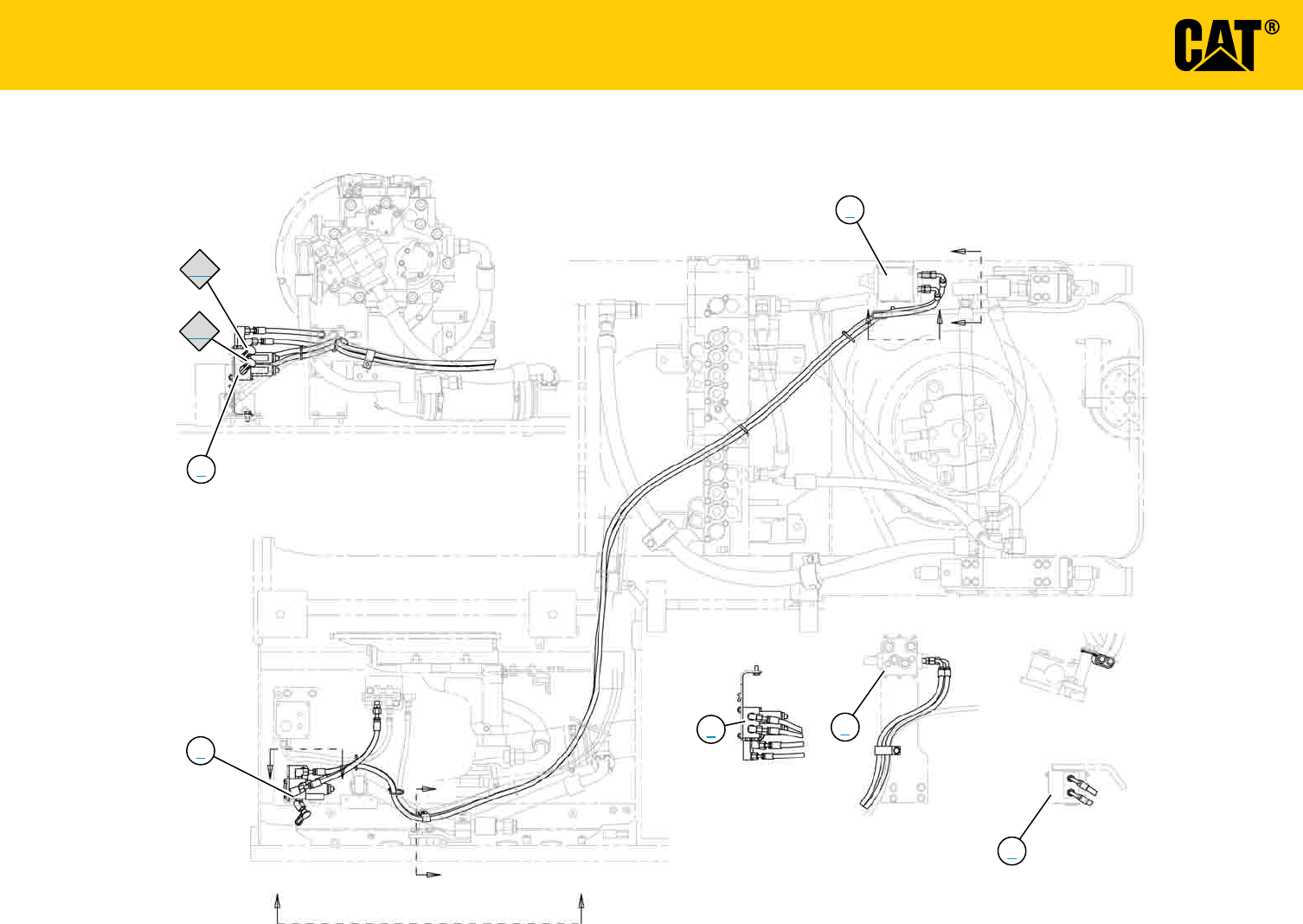

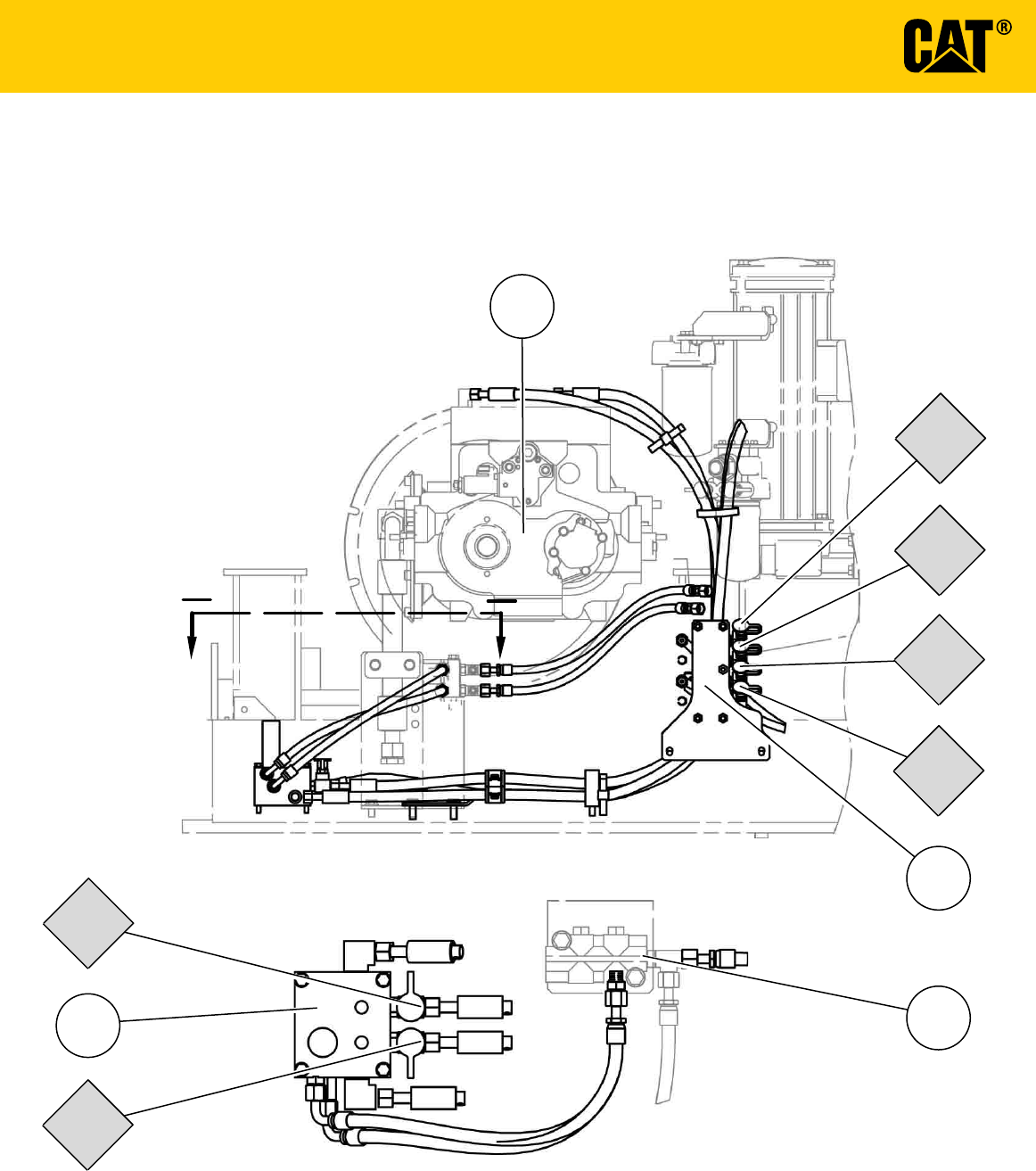

Front Frame
Rear Frame
Tap Views
Features
Options
Bookmarks
X
EC-C3
EC-C2
E-C60
EC-C1
E-C61
To set your screen resolution do the following:
RIGHT CLICK on the DESKTOP.
Select PROPERTIES.
CLICK the SETTINGS TAB.
MOVE THE SLIDER under SCREEN RESOLUTION
until it shows 1024 X 768.
CLICK OK to apply the resolution.
This document is best viewed at a
screen resolution of 1024 X 768.
FUNCTION
Zoom In
HOTKEYS (Keyboard Shortcuts)
Zoom Out
Fit to Page
Hand Tool
“CTRL” / “+”
KEYS
“CTRL” / “-”
“CTRL” / “0” (zero)
“SPACEBAR” (hold down)
Find
“CTRL” / “F”
©
2009 Caterpillar, All Rights Reserved
Printed in U.S.A.
RENR9508-02
September 2009
System 14: Combined Function With Medium Pressure
330D and 336D Excavator
Hydraulic System - Attachment
330D:
B6H1-UP
JLP1-UP
MWP1-UP
EDX1-UP
336D:
J2F1-UP
PRF1-UP
W3K1-UP
WRK1-UP
KKT1-UP
PGW1-UP
COMPONENT LOCATION
Description
Part
Number
Machine
Location
Schematic
Location
Pump Gp - Gear (Pilot) (Medium Pressure) 207-8235 B-3
Valve Gp - Control (Medium Pressure) 232-4103 E-6
Valve Gp - Solenoid (Pressure Reducing) 259-7430 D-3
Schematic - System 14 (Standard) 255-5859
Note B D-2
Sensor As - 1-Way/2-Way Flow Pessure Note B E-4
Valve Gp - 1-Way/2-Way Check Sol (EC1) D-5
Valve Gp - 1-Way/2-Way Check Sol (EC2) E-5
Valve Gp - 1-Way/2-Way Check Sol (EC3) E-4
Valve Gp - 4 Function Work Tool Solenoids E-2
Valve Gp - Auxilliary Control C-6
Valve Gp - Negative Flow Control Solenoid Note B D-2
Valve Gp - Solenoid & Relief (ERV1) Note B D-5
Valve Gp - Solenoid & Relief (ERV3) Note B E-5
Accumulator Gp
164-6981
A-5
Block
Cylinder Gp - Bucket Note A E-5
Cylinder Gp - Boom Note A E-6
Cylinder Gp - Stick Note A E-5
Filter Gp - Case Drain
289-8194
A-5
Filter Gp - Pilot Hydraulic
158-8987
A-4
Filter Gp - Return Oil
188-4140
B-6
Manifold Gp - Control
215-5037
B-6
Motor Gp - Fan
234-4638
B-6
Motor Gp - Left Travel
271-6376
E-4
Motor Gp - Right Travel
271-6376
E-3
Motor Gp - Swing 200-3373 E-7
Pump Gp - Fan
259-0815
B-3
Pump GP - Main Hydraulic 283-6116 B-3
Sensor As - Left Pump Pressure 260-2180 A-2
Sensor As - Right Pump Pressure B-2
Switch As - LH Travel Pressure
307-5769
C-7
Switch As - Pilot Pressure Note B A-7
Switch As - RH Travel Pressure C-6
Swivel Gp
234-4440
D-3
Valve Gp - Cooler Bypass
190-7745
C-6
Valve Gp - Heavy Lift Solenoid
121-6303
A-4
Valve Gp - Left Travel Counterbalance
204-2619
E-4
Valve Gp - LH Joystick
270-5951
A-7
Valve Gp - Load Control (Boom)
255-5683
Note B
Note B
Note B
Note B
Note B
C-2
Valve Gp - Load Control (Stick)
255-5680
C-5
Valve Gp - Main Control
285-1536
C-3
Valve Gp - Pilot Travel
270-5947
C-7
Valve Gp - Press Reducing Boom/Swing 232-4102 B-4
Valve Gp - RH Joystick
270-5952
A-7
Valve Gp - Right Travel Counterbalance E-3
Valve Gp - Shuttle 185-0462 A-7
Valve Gp - Swing Cushion 158-9085
1
2
3
6
20
27
28
29
30
31
39
45
46
4
7
8
9
10
11
12
13
14
15
16
17
18
19
21
22
23
24
25
26
32
33
34
35
36
37
38
40
41
42
43
44
47
E-7
Medium Pressure Attachment
Standard 330D System 14
Note A: Refer to parts manual for specific cylinder information.
Note B: Part numbers are located on the main Hydraulic System Schematic
according to the effectivity of the machine.
260-2180
307-5769
204-2619

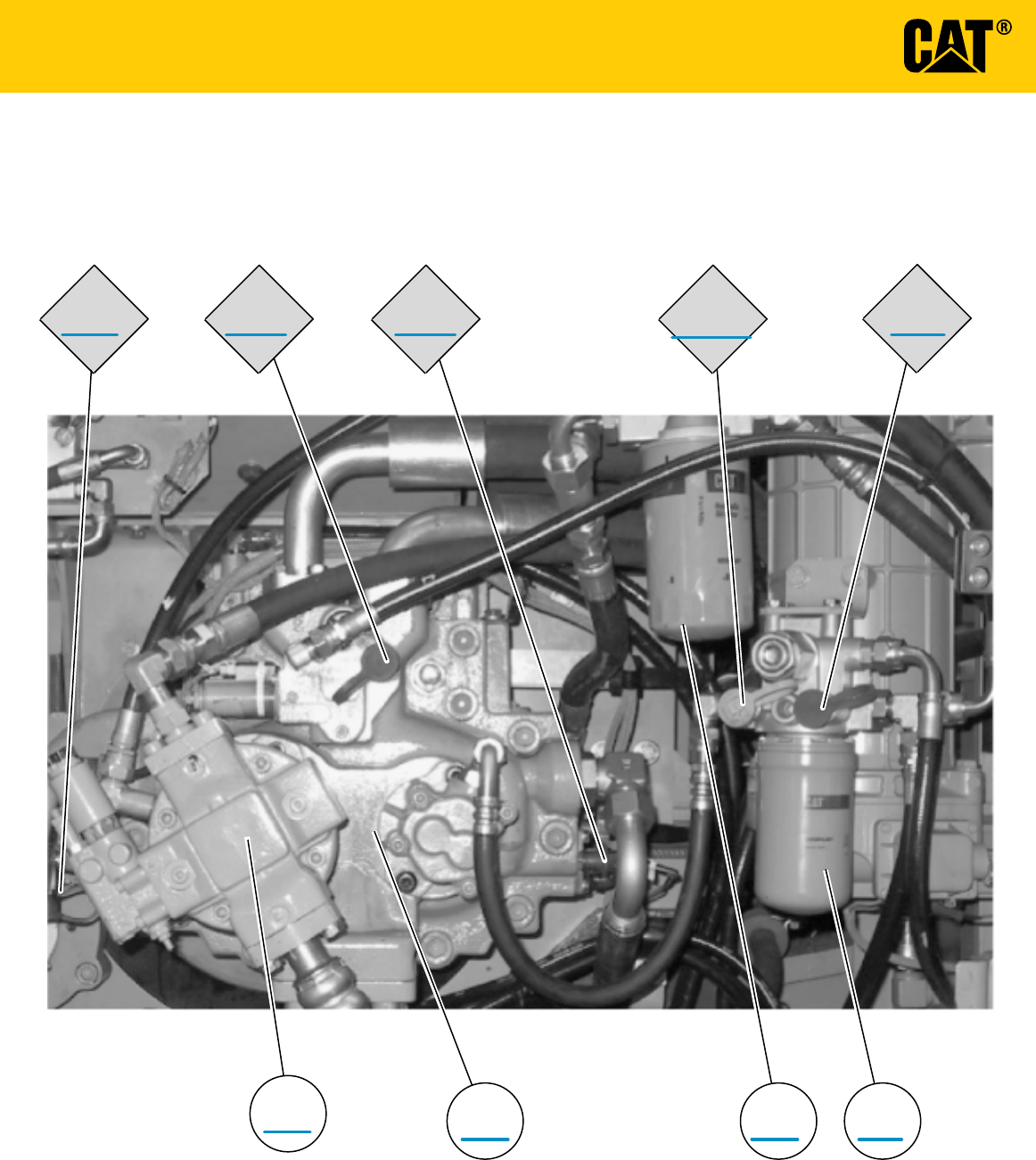

TAP LOCATION
Tap
Number
Description
Schematic
Location
AA Pilot Pump Delivery Pressure A-4
BB Right Pump Delivery Pressure B-2
CC Pump Power Shift Pressure A-2
DD Left Pump Delivery Pressure A-2
EE Auxilliary Control Pilot Pressure (Pb1)
FF
Auxilliary Control Pilot Pressure (Pa1)
GG
Single/Double Attach Pressure (bR2) E-2
HH Single/Double Attach Pressure (aR2) E-2
LL Left Pump Negative Flow Signal Pressure D-1
MM Right Pump Negative Flow Signal Pressure D-1
SOS Hydraulic Oil Sampling Port A-4
NN Medium Pressure Control Pilot Pressure (MPb1) D-2
OO Medium Pressure Control Pilot Pressure (MPa1) D-3
E-2
E-2
FLUID POWER SYMBOLS
ONE POSITION
TWO POSITION
THREE POSITION
VENTED
PRESSURIZED
RETURN ABOVE FLUID LEVEL
RETURN BELOW FLUID LEVEL
LINES CROSSING LINES JOINING
TWO-WAY
THREE-WAY
FOUR-WAY
SPRING
CONTROL VALVES
RESTRICTION
LINE RESTRICTION
(FIXED)
2-SECTION PUMP
MAIN
AUX.
SPRING
(ADJUSTABLE)
VARIABILITY
LINE RESTRICTION
(VARIABLE)
LINE RESTRICTION
VARIABLE and PRESSURE
COMPENSATED
PRESSURE
COMPENSATION
PUMP: VARIABLE and
PRESSURE COMPENSATED
ENERGY TRIANGLES
HYDRAULIC PNEUMATIC
MEASUREMENT
PRESSURE
TEMPERATURE
FLOW
ROTATING SHAFTS
UNIDIRECTIONAL BIDIRECTIONAL
PUSH-PULL LEVER PEDALGENERAL MANUAL PUSH BUTTON SPRING
MANUAL CONTROL SYMBOLS
HYDRAULIC MOTORS
FIXED
DISPLACEMENT
VARIABLE DISPLACEMENT
NON-COMPENSATED
UNIDIRECTIONAL
BIDIRECTIONAL
HYDRAULIC PUMPS
FLUID STORAGE RESERVOIRS
CROSSING AND JOINING LINES
VALVE ENVELOPES
VALVE PORTS
BASIC COMPONENT SYMBOLS
FLUID CONDITIONER
PUMP or MOTOR
FIXED
DISPLACEMENT
VARIABLE DISPLACEMENT
NON-COMPENSATED
UNIDIRECTIONAL
BIDIRECTIONAL
VALVES
PILOT CONTROL SYMBOLS
RELEASED PRESSURE
EXTERNAL RETURN
INTERNAL RETURN
REMOTE SUPPLY PRESSURE
SIMPLIFIED
COMPLETE
INTERNAL
SUPPLY PRESSURE
ACCUMULATORS
SPRING LOADED GAS CHARGED
SOLENOID
or MANUAL
SOLENOID
and PILOT
SOLENOID and
PILOT or MANUAL
COMBINATION CONTROLS
SOLENOID
SERVO
THERMAL
DETENT
HYDRAULIC AND PNEUMATIC CYLINDERS
DOUBLE ACTINGSINGLE ACTING
BASIC
SYMBOL
SPRING
LOADED
CHECK VALVES
TWO
POSITION
INFINITE
POSITIONING
FLOW IN ONE
DIRECTION
FLOW ALLOWED IN
EITHER DIRECTION
THREE
POSITION
CROSS
FLOW
PARALLEL
FLOW
INTERNAL PASSAGEWAYS
NORMAL POSITION
A B
P T
A B
P T
SHIFTED POSITION
INFINITE POSITION
CONTROL VALVES
ATTACHMENT
MANUAL SHUTOFF
SHUTTLE PILOT
CONTROLLED
ELECTRICAL SYMBOLS
Hydraulic Symbols (Electrical)
325-AG135 PK-14
Circuit Identification
Number
Wire Color
Wire Gauge
Harness identification code
This example indicates
wire 135 in harness "AG".
325-PK-14
Wire Gauge
Wire Color
Circuit Number
Identification
Wire Number Identification Codes
Current Standard
Previous Standard
Electrical Schematic Example
Hydraulic Schematic Example
325-PK
Wire Color
Circuit Number
Identification
B
A
Wire
Wire
(EXAMPLE VALVE)
Current Standard
Transducer
(Fluid)
Transducer
(Gas / Air)
G
Generator
Electrical Wire
Pressure Switch
M
Electric Motor
Pressure Switch
(Adjustable)
Temperature Switch
Pressure
Symbol
Temperature
Symbol
Level
Symbol
Flow
Symbol
Electrical Symbols (Electrical)
T
LINE PATTERNS
Drain / Return Lines
Component Group
Pilot / Load Sensing Pressure
Pressure Line
Attachment
Air Line
CALLOUTS
Taps (Pressure, Sampling, Sensor - by letter)
YY

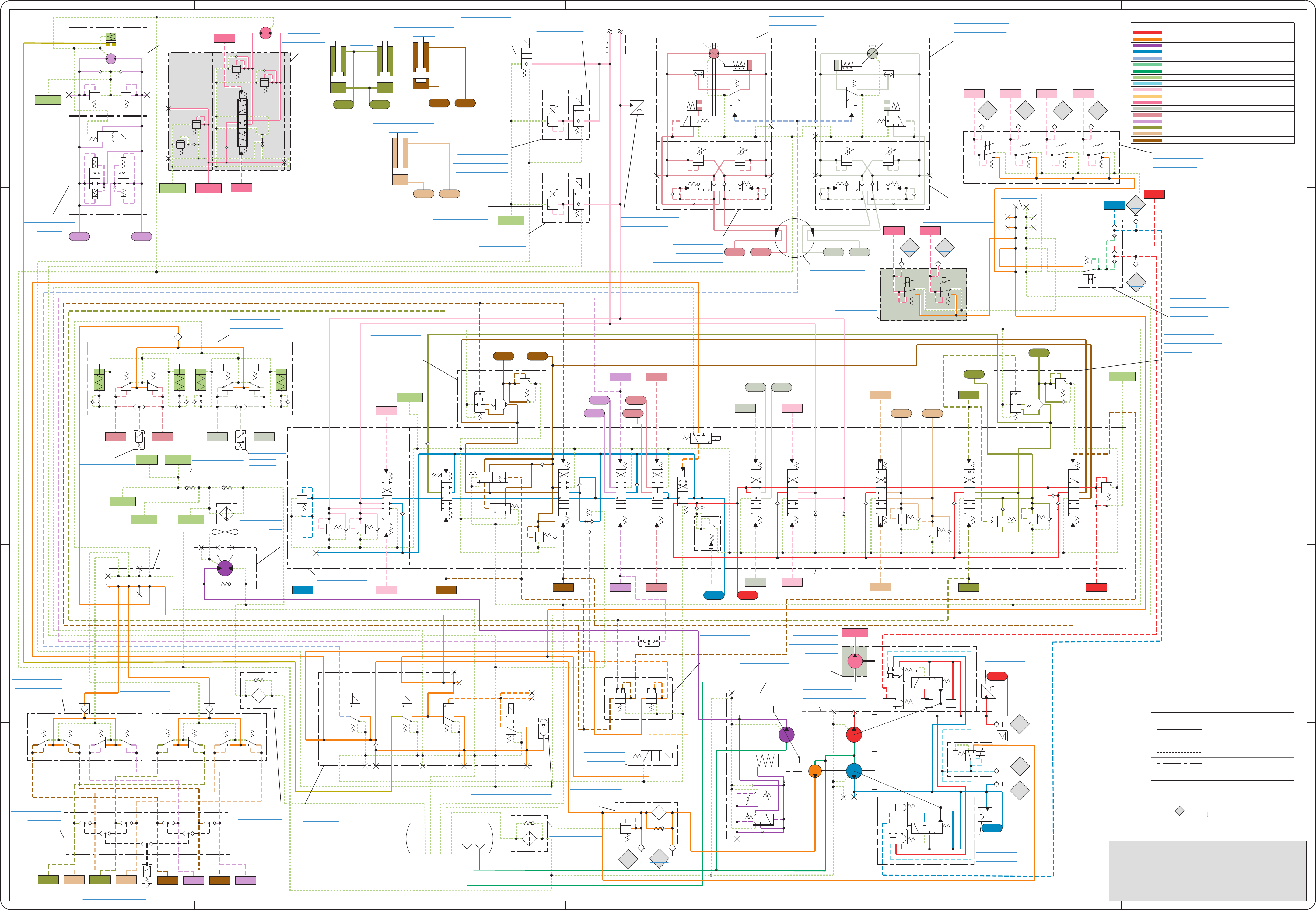

THIS SCHEMATIC IS FOR THE 330D and 336D EXCAVATOR
